Azure Managed Identity - Add Graph Permission
Entra ID06/23/2024
Because the topic of Managed Identity is referenced in many posts and this is standard procedure in the Function/Logic App today, I would like to demonstrate the use and assignment of graph permissions for a managed identity.
Activating Managed Identity
If we have an Azure Function or Logic App, for example, the first step is to activate the Managed Identity of the resource.

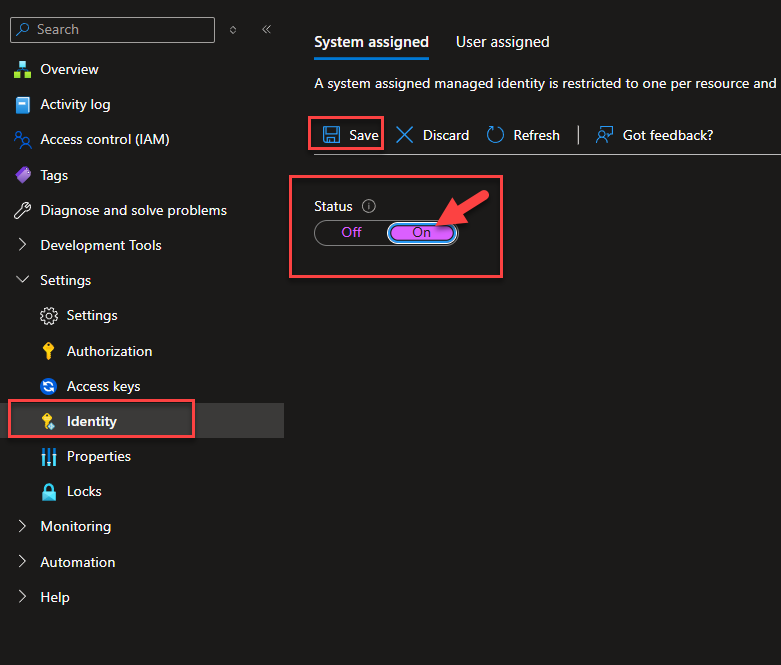

This is quite simple: we just go to the resource in Azure, go to Identity, click System Assigned, set it to On, and then save
After saving, the Object ID should appear after a few seconds. If we take this Object ID, we can now find a associated Enterprise App in the Entra ID.
Checking Graph API permissions
We want to set the appropriate Graph Permission (Application permission) on the Logic App or Function. To do this, we first need to know what permissions are available and what the exact name is.
https://graph.microsoft.com/v1.0/servicePrincipals(appId='00000003-0000-0000-c000-000000000000')?$select=id,appId,displayName,appRoles,oauth2PermissionScopes,resourceSpecificApplicationPermissions
To find out, we can use the Graph Request and the Graph App ID to list all roles and specific permissions. We then receive a JSON object with all roles.
Example response:
"@odata.context": "https://graph.microsoft.com/v1.0/$metadata#servicePrincipals(id,appId,displayName,appRoles,oauth2PermissionScopes,resourceSpecificApplicationPermissions)/$entity",
"id": "8b44c67b-91cc-4488-af9b-94a248357254",
"appId": "00000003-0000-0000-c000-000000000000",
"displayName": "Microsoft Graph",
"appRoles": [
{
"allowedMemberTypes": [
"Application"
],
"description": "Allows the app to read access reviews, reviewers, decisions and settings in the organization, without a signed-in user.",
"displayName": "Read all access reviews",
"id": "d07a8cc0-3d51-4b77-b3b0-32704d1f69fa",
"isEnabled": true,
"origin": "Application",
"value": "AccessReview.Read.All"
},
........
I have exported all application permissions and provided them as a list:
| App Role | value |
|---|---|
| Read all access reviews | AccessReview.Read.All |
| Manage all access reviews | AccessReview.ReadWrite.All |
| Manage access reviews for group and app memberships | AccessReview.ReadWrite.Membership |
| Read all acronyms | Acronym.Read.All |
| Read all administrative units | AdministrativeUnit.Read.All |
| Read and write all administrative units | AdministrativeUnit.ReadWrite.All |
| Read all terms of use agreements | Agreement.Read.All |
| Read and write all terms of use agreements | Agreement.ReadWrite.All |
| Read all terms of use acceptance statuses | AgreementAcceptance.Read.All |
| Read all AI enterprise interactions. | AiEnterpriseInteraction.Read.All |
| Read API connectors for authentication flows | APIConnectors.Read.All |
| Read and write API connectors for authentication flows | APIConnectors.ReadWrite.All |
| Read all app catalogs | AppCatalog.Read.All |
| Read and write to all app catalogs | AppCatalog.ReadWrite.All |
| Read and write the remote desktop security configuration for all apps | Application-RemoteDesktopConfig.ReadWrite.All |
| Read all applications | Application.Read.All |
| Read and write all applications | Application.ReadWrite.All |
| Manage apps that this app creates or owns | Application.ReadWrite.OwnedBy |
| Manage app permission grants and app role assignments | AppRoleAssignment.ReadWrite.All |
| Read all approvals | ApprovalSolution.Read.All |
| Read all approvals and manage approval subscriptions | ApprovalSolution.ReadWrite.All |
| Read attack simulation data of an organization | AttackSimulation.Read.All |
| Read, create, and update all attack simulation data of an organization | AttackSimulation.ReadWrite.All |
| Read all audit log data | AuditLog.Read.All |
| Read audit logs data from Dynamics CRM workload | AuditLogsQuery-CRM.Read.All |
| Read audit logs data from Endpoint Data Loss Prevention workload | AuditLogsQuery-Endpoint.Read.All |
| Read audit logs data from Entra (Azure AD) workload | AuditLogsQuery-Entra.Read.All |
| Read audit logs data from Exchange workload | AuditLogsQuery-Exchange.Read.All |
| Read audit logs data from OneDrive workload | AuditLogsQuery-OneDrive.Read.All |
| Read audit logs data from SharePoint workload | AuditLogsQuery-SharePoint.Read.All |
| Read audit logs data from all services | AuditLogsQuery.Read.All |
| Read all authentication context information | AuthenticationContext.Read.All |
| Read and write all authentication context information | AuthenticationContext.ReadWrite.All |
| Read all backup configuration policies | BackupRestore-Configuration.Read.All |
| Read and edit all backup configuration policies | BackupRestore-Configuration.ReadWrite.All |
| Read the status of the M365 backup service | BackupRestore-Control.Read.All |
| Update or read the status of the M365 backup service | BackupRestore-Control.ReadWrite.All |
| Read all monitoring, quota and billing information for the tenant | BackupRestore-Monitor.Read.All |
| Read all restore sessions | BackupRestore-Restore.Read.All |
| Read restore all sessions and start restore sessions from backups | BackupRestore-Restore.ReadWrite.All |
| Search for metadata properties in all backup snapshots | BackupRestore-Search.Read.All |
| Read and write application billing configuration | BillingConfiguration.ReadWrite.All |
| Read all BitLocker keys | BitlockerKey.Read.All |
| Read all BitLocker keys basic information | BitlockerKey.ReadBasic.All |
| Manage bookings information | Bookings.Manage.All |
| Read all Bookings related resources. | Bookings.Read.All |
| Read and write bookings information | Bookings.ReadWrite.All |
| Read and write all Bookings related resources. | BookingsAppointment.ReadWrite.All |
| Read all bookmarks | Bookmark.Read.All |
| Read all browser site lists for your organization | BrowserSiteLists.Read.All |
| Read and write all browser site lists for your organization | BrowserSiteLists.ReadWrite.All |
| Read all business scenario configurations this app creates or owns | BusinessScenarioConfig.Read.OwnedBy |
| Read and write all business scenario configurations this app creates or owns | BusinessScenarioConfig.ReadWrite.OwnedBy |
| Read data for all business scenarios this app creates or owns | BusinessScenarioData.Read.OwnedBy |
| Read and write data for all business scenarios this app creates or owns | BusinessScenarioData.ReadWrite.OwnedBy |
| Read calendars in all mailboxes | Calendars.Read |
| Read basic details of calendars in all mailboxes | Calendars.ReadBasic.All |
| Read and write calendars in all mailboxes | Calendars.ReadWrite |
| Read all emergency call events | CallEvents-Emergency.Read.All |
| Read all call events | CallEvents.Read.All |
| Read PSTN and direct routing call log data | CallRecord-PstnCalls.Read.All |
| Read all call records | CallRecords.Read.All |
| Access media streams in a call as an app | Calls.AccessMedia.All |
| Initiate outgoing 1 to 1 calls from the app | Calls.Initiate.All |
| Initiate outgoing group calls from the app | Calls.InitiateGroupCall.All |
| Join group calls and meetings as an app | Calls.JoinGroupCall.All |
| Join group calls and meetings as a guest | Calls.JoinGroupCallAsGuest.All |
| Read Change Management items | ChangeManagement.Read.All |
| Create channels | Channel.Create |
| Delete channels | Channel.Delete.All |
| Read the names and descriptions of all channels | Channel.ReadBasic.All |
| Read the members of all channels | ChannelMember.Read.All |
| Add and remove members from all channels | ChannelMember.ReadWrite.All |
| Read all channel messages | ChannelMessage.Read.All |
| Flag channel messages for violating policy | ChannelMessage.UpdatePolicyViolation.All |
| Read the names, descriptions, and settings of all channels | ChannelSettings.Read.All |
| Read and write the names, descriptions, and settings of all channels | ChannelSettings.ReadWrite.All |
| Create chats | Chat.Create |
| Delete and recover deleted chats | Chat.ManageDeletion.All |
| Read all chat messages | Chat.Read.All |
| Read all chat messages for chats where the associated Teams application is installed. | Chat.Read.WhereInstalled |
| Read names and members of all chat threads | Chat.ReadBasic.All |
| Read names and members of all chat threads where the associated Teams application is installed. | Chat.ReadBasic.WhereInstalled |
| Read and write all chat messages | Chat.ReadWrite.All |
| Read and write all chat messages for chats where the associated Teams application is installed. | Chat.ReadWrite.WhereInstalled |
| Flag chat messages for violating policy | Chat.UpdatePolicyViolation.All |
| Read the members of all chats | ChatMember.Read.All |
| Read the members of all chats where the associated Teams application is installed. | ChatMember.Read.WhereInstalled |
| Add and remove members from all chats | ChatMember.ReadWrite.All |
| Add and remove members from all chats where the associated Teams application is installed. | ChatMember.ReadWrite.WhereInstalled |
| Read all chat messages | ChatMessage.Read.All |
| Read all discovered cloud applications data | CloudApp-Discovery.Read.All |
| Read Cloud PCs | CloudPC.Read.All |
| Read and write Cloud PCs | CloudPC.ReadWrite.All |
| Read all Viva Engage communities | Community.Read.All |
| Read and write all Viva Engage communities | Community.ReadWrite.All |
| Read all consent requests | ConsentRequest.Read.All |
| Read and write all consent requests | ConsentRequest.ReadWrite.All |
| Read contacts in all mailboxes | Contacts.Read |
| Read and write contacts in all mailboxes | Contacts.ReadWrite |
| Read cross-tenant basic information | CrossTenantInformation.ReadBasic.All |
| Read all shared cross-tenant user profiles and export their data | CrossTenantUserProfileSharing.Read.All |
| Read all shared cross-tenant user profiles and export or delete their data | CrossTenantUserProfileSharing.ReadWrite.All |
| Read all custom authentication extensions | CustomAuthenticationExtension.Read.All |
| Read and write all custom authentication extensions | CustomAuthenticationExtension.ReadWrite.All |
| Receive custom authentication extension HTTP requests | CustomAuthenticationExtension.Receive.Payload |
| Read all custom detection rules | CustomDetection.Read.All |
| Read and write all custom detection rules | CustomDetection.ReadWrite.All |
| Read custom security attribute assignments | CustomSecAttributeAssignment.Read.All |
| Read and write custom security attribute assignments | CustomSecAttributeAssignment.ReadWrite.All |
| Read all custom security attribute audit logs | CustomSecAttributeAuditLogs.Read.All |
| Read custom security attribute definitions | CustomSecAttributeDefinition.Read.All |
| Read and write custom security attribute definitions | CustomSecAttributeDefinition.ReadWrite.All |
| Read the provisioning configuration of all active custom security attributes | CustomSecAttributeProvisioning.Read.All |
| Read and edit the provisioning configuration of all active custom security attributes | CustomSecAttributeProvisioning.ReadWrite.All |
| Read all custom tags data | CustomTags.Read.All |
| Read and write custom tags data | CustomTags.ReadWrite.All |
| Read Delegated Admin relationships with customers | DelegatedAdminRelationship.Read.All |
| Manage Delegated Admin relationships with customers | DelegatedAdminRelationship.ReadWrite.All |
| Read all delegated permission grants | DelegatedPermissionGrant.Read.All |
| Manage all delegated permission grants | DelegatedPermissionGrant.ReadWrite.All |
| Read all devices | Device.Read.All |
| Read and write devices | Device.ReadWrite.All |
| Read device local credential passwords | DeviceLocalCredential.Read.All |
| Read device local credential properties | DeviceLocalCredential.ReadBasic.All |
| Read Microsoft Intune apps | DeviceManagementApps.Read.All |
| Read and write Microsoft Intune apps | DeviceManagementApps.ReadWrite.All |
| Read Microsoft Cloud PKI objects | DeviceManagementCloudCA.Read.All |
| Read and write Microsoft Cloud PKI objects | DeviceManagementCloudCA.ReadWrite.All |
| Read Microsoft Intune device configuration and policies | DeviceManagementConfiguration.Read.All |
| Read and write Microsoft Intune device configuration and policies | DeviceManagementConfiguration.ReadWrite.All |
| Perform user-impacting remote actions on Microsoft Intune devices | DeviceManagementManagedDevices.PrivilegedOperations.All |
| Read Microsoft Intune devices | DeviceManagementManagedDevices.Read.All |
| Read and write Microsoft Intune devices | DeviceManagementManagedDevices.ReadWrite.All |
| Read Microsoft Intune RBAC settings | DeviceManagementRBAC.Read.All |
| Read and write Microsoft Intune RBAC settings | DeviceManagementRBAC.ReadWrite.All |
| Read Microsoft Intune Scripts | DeviceManagementScripts.Read.All |
| Read and write Microsoft Intune Scripts | DeviceManagementScripts.ReadWrite.All |
| Read Microsoft Intune configuration | DeviceManagementServiceConfig.Read.All |
| Read and write Microsoft Intune configuration | DeviceManagementServiceConfig.ReadWrite.All |
| Create device template | DeviceTemplate.Create |
| Read all device templates | DeviceTemplate.Read.All |
| Read and write all device templates | DeviceTemplate.ReadWrite.All |
| Read directory data | Directory.Read.All |
| Read and write directory data | Directory.ReadWrite.All |
| Read all Azure AD recommendations | DirectoryRecommendations.Read.All |
| Read and update all Azure AD recommendations | DirectoryRecommendations.ReadWrite.All |
| Read domains | Domain.Read.All |
| Read and write domains | Domain.ReadWrite.All |
| Read all eDiscovery objects | eDiscovery.Read.All |
| Read and write all eDiscovery objects | eDiscovery.ReadWrite.All |
| Read Education app settings | EduAdministration.Read.All |
| Manage education app settings | EduAdministration.ReadWrite.All |
| Read all class assignments with grades | EduAssignments.Read.All |
| Read all class assignments without grades | EduAssignments.ReadBasic.All |
| Create, read, update and delete all class assignments with grades | EduAssignments.ReadWrite.All |
| Create, read, update and delete all class assignments without grades | EduAssignments.ReadWriteBasic.All |
| Read all class modules and resources | EduCurricula.Read.All |
| Read and write all class modules and resources | EduCurricula.ReadWrite.All |
| Read all tenant reading assignments submissions data | EduReports-Reading.Read.All |
| Read all tenant reading assignments submissions data | EduReports-Reading.ReadAnonymous.All |
| Read all tenant reflect check-ins submissions data | EduReports-Reflect.Read.All |
| Read all tenant reflect check-ins submissions data | EduReports-Reflect.ReadAnonymous.All |
| Read the organization's roster | EduRoster.Read.All |
| Read a limited subset of the organization's roster | EduRoster.ReadBasic.All |
| Read and write the organization's roster | EduRoster.ReadWrite.All |
| Read all entitlement management resources | EntitlementManagement.Read.All |
| Read and write all entitlement management resources | EntitlementManagement.ReadWrite.All |
| Read all authentication event listeners | EventListener.Read.All |
| Read and write all authentication event listeners | EventListener.ReadWrite.All |
| Read all external connections | ExternalConnection.Read.All |
| Read and write all external connections | ExternalConnection.ReadWrite.All |
| Read and write external connections | ExternalConnection.ReadWrite.OwnedBy |
| Read all external items | ExternalItem.Read.All |
| Read and write items in external datasets | ExternalItem.ReadWrite.All |
| Read and write external items | ExternalItem.ReadWrite.OwnedBy |
| Read all external user profiles | ExternalUserProfile.Read.All |
| Read and write all external user profiles | ExternalUserProfile.ReadWrite.All |
| Ingest SharePoint and OneDrive content to make it available in the search index | FileIngestion.Ingest |
| Manage onboarding for a Hybrid Cloud tenant | FileIngestionHybridOnboarding.Manage |
| Read files in all site collections | Files.Read.All |
| Read and write files in all site collections | Files.ReadWrite.All |
| Have full access to the application's folder without a signed in user. | Files.ReadWrite.AppFolder |
| Access selected Files without a signed in user. | Files.SelectedOperations.Selected |
| Access selected file storage containers | FileStorageContainer.Selected |
| Read all group conversations | Group-Conversation.Read.All |
| Read and write all group conversations | Group-Conversation.ReadWrite.All |
| Create groups | Group.Create |
| Read all groups | Group.Read.All |
| Read and write all groups | Group.ReadWrite.All |
| Read all group memberships | GroupMember.Read.All |
| Read and write all group memberships | GroupMember.ReadWrite.All |
| Read all scenario health monitoring alert | HealthMonitoringAlert.Read.All |
| Read and write all scenario monitoring alerts | HealthMonitoringAlert.ReadWrite.All |
| Read all scenario health monitoring alert configurations | HealthMonitoringAlertConfig.Read.All |
| Read and write all scenario monitoring alerts | HealthMonitoringAlertConfig.ReadWrite.All |
| Read identity providers | IdentityProvider.Read.All |
| Read and write identity providers | IdentityProvider.ReadWrite.All |
| Read all identity risk event information | IdentityRiskEvent.Read.All |
| Read and write all risk detection information | IdentityRiskEvent.ReadWrite.All |
| Read all identity risky service principal information | IdentityRiskyServicePrincipal.Read.All |
| Read and write all identity risky service principal information | IdentityRiskyServicePrincipal.ReadWrite.All |
| Read all identity risky user information | IdentityRiskyUser.Read.All |
| Read and write all risky user information | IdentityRiskyUser.ReadWrite.All |
| Read all identity user flows | IdentityUserFlow.Read.All |
| Read and write all identity user flows | IdentityUserFlow.ReadWrite.All |
| View data connector definitions | IndustryData-DataConnector.Read.All |
| Manage data connector definitions | IndustryData-DataConnector.ReadWrite.All |
| Upload files to a data connector | IndustryData-DataConnector.Upload |
| View inbound flow definitions | IndustryData-InboundFlow.Read.All |
| Manage inbound flow definitions | IndustryData-InboundFlow.ReadWrite.All |
| View outbound flow definitions | IndustryData-OutboundFlow.Read.All |
| Manage outbound flow definitions | IndustryData-OutboundFlow.ReadWrite.All |
| View reference definitions | IndustryData-ReferenceDefinition.Read.All |
| Manage reference definitions | IndustryData-ReferenceDefinition.ReadWrite.All |
| View current and previous runs | IndustryData-Run.Read.All |
| View and start runs | IndustryData-Run.Start |
| View source system definitions | IndustryData-SourceSystem.Read.All |
| Manage source system definitions | IndustryData-SourceSystem.ReadWrite.All |
| Read time period definitions | IndustryData-TimePeriod.Read.All |
| Manage time period definitions | IndustryData-TimePeriod.ReadWrite.All |
| View basic service and resource information | IndustryData.ReadBasic.All |
| Read all configurations for protecting organizational data applicable to users | InformationProtectionConfig.Read.All |
| Sign digests for data | InformationProtectionContent.Sign.All |
| Create protected content | InformationProtectionContent.Write.All |
| Read all published labels and label policies for an organization. | InformationProtectionPolicy.Read.All |
| Read all user metrics insights | Insights-UserMetric.Read.All |
| Read all assignments | LearningAssignedCourse.Read.All |
| Read and write all assignments | LearningAssignedCourse.ReadWrite.All |
| Read all learning content | LearningContent.Read.All |
| Manage all learning content | LearningContent.ReadWrite.All |
| Read all self-initiated courses | LearningSelfInitiatedCourse.Read.All |
| Read and write all self-initiated courses | LearningSelfInitiatedCourse.ReadWrite.All |
| Manage all license assignments | LicenseAssignment.ReadWrite.All |
| Read all lifecycle workflows resources | LifecycleWorkflows.Read.All |
| Read and write all lifecycle workflows resources | LifecycleWorkflows.ReadWrite.All |
| Access selected ListItems without a signed in user. | ListItems.SelectedOperations.Selected |
| Access selected Lists without a signed in user. | Lists.SelectedOperations.Selected |
| Read mail in all mailboxes | Mail.Read |
| Read basic mail in all mailboxes | Mail.ReadBasic |
| Read basic mail in all mailboxes | Mail.ReadBasic.All |
| Read and write mail in all mailboxes | Mail.ReadWrite |
| Send mail as any user | Mail.Send |
| Read all the users' mailbox folders | MailboxFolder.Read.All |
| Read and write all the users' mailbox folders | MailboxFolder.ReadWrite.All |
| Allows the app to perform backup and restore for all mailbox items | MailboxItem.ImportExport.All |
| Read all the users' mailbox items | MailboxItem.Read.All |
| Read all user mailbox settings | MailboxSettings.Read |
| Read and write all user mailbox settings | MailboxSettings.ReadWrite |
| Read all hidden memberships | Member.Read.Hidden |
| Read all multi-tenant organization details and tenants | MultiTenantOrganization.Read.All |
| Read multi-tenant organization basic details and active tenants | MultiTenantOrganization.ReadBasic.All |
| Read and write all multi-tenant organization details and tenants | MultiTenantOrganization.ReadWrite.All |
| Read all configurations used for mutual-TLS client authentication. | MutualTlsOauthConfiguration.Read.All |
| Read and write all configurations used for mutual-TLS client authentication. | MutualTlsOauthConfiguration.ReadWrite.All |
| Read all network access reports | NetworkAccess-Reports.Read.All |
| Read all network access information | NetworkAccess.Read.All |
| Read and write all network access information | NetworkAccess.ReadWrite.All |
| Read properties of all branches for network access | NetworkAccessBranch.Read.All |
| Read and write properties of all branches for network access | NetworkAccessBranch.ReadWrite.All |
| Read all security and routing policies for network access | NetworkAccessPolicy.Read.All |
| Read and write all security and routing policies for network access | NetworkAccessPolicy.ReadWrite.All |
| Read all OneNote notebooks | Notes.Read.All |
| Read and write all OneNote notebooks | Notes.ReadWrite.All |
| Read all AI Insights for online meetings. | OnlineMeetingAiInsight.Read.All |
| Read all AI Insights for online meetings where the Teams application is installed. | OnlineMeetingAiInsight.Read.Chat |
| Read online meeting artifacts | OnlineMeetingArtifact.Read.All |
| Read all recordings of online meetings. | OnlineMeetingRecording.Read.All |
| Read online meeting details | OnlineMeetings.Read.All |
| Read and create online meetings | OnlineMeetings.ReadWrite.All |
| Read all transcripts of online meetings. | OnlineMeetingTranscript.Read.All |
| Read all on-premises directory synchronization information | OnPremDirectorySynchronization.Read.All |
| Read and write all on-premises directory synchronization information | OnPremDirectorySynchronization.ReadWrite.All |
| Manage on-premises published resources | OnPremisesPublishingProfiles.ReadWrite.All |
| Read organization information | Organization.Read.All |
| Read and write organization information | Organization.ReadWrite.All |
| Read organizational branding information | OrganizationalBranding.Read.All |
| Read and write organizational branding information | OrganizationalBranding.ReadWrite.All |
| Read organizational contacts | OrgContact.Read.All |
| Read organization-wide apps and services settings | OrgSettings-AppsAndServices.Read.All |
| Read and write organization-wide apps and services settings | OrgSettings-AppsAndServices.ReadWrite.All |
| Read organization-wide Dynamics customer voice settings | OrgSettings-DynamicsVoice.Read.All |
| Read and write organization-wide Dynamics customer voice settings | OrgSettings-DynamicsVoice.ReadWrite.All |
| Read organization-wide Microsoft Forms settings | OrgSettings-Forms.Read.All |
| Read and write organization-wide Microsoft Forms settings | OrgSettings-Forms.ReadWrite.All |
| Read organization-wide Microsoft 365 apps installation settings | OrgSettings-Microsoft365Install.Read.All |
| Read and write organization-wide Microsoft 365 apps installation settings | OrgSettings-Microsoft365Install.ReadWrite.All |
| Read organization-wide Microsoft To Do settings | OrgSettings-Todo.Read.All |
| Read and write organization-wide Microsoft To Do settings | OrgSettings-Todo.ReadWrite.All |
| Read all billing data for your company's tenant | PartnerBilling.Read.All |
| Read security alerts of customer with CSP relationship | PartnerSecurity.Read.All |
| Read security alerts and update status of security alerts of customer with CSP relationship | PartnerSecurity.ReadWrite.All |
| Read all pending external user profiles | PendingExternalUserProfile.Read.All |
| Read and write all pending external user profiles | PendingExternalUserProfile.ReadWrite.All |
| Read all users' relevant people lists | People.Read.All |
| Read all tenant-wide people settings | PeopleSettings.Read.All |
| Read and write all tenant-wide people settings | PeopleSettings.ReadWrite.All |
| Read all company places | Place.Read.All |
| Read all workplace devices | PlaceDevice.Read.All |
| Read and write all workplace devices | PlaceDevice.ReadWrite.All |
| Read and write telemetry for all workplace devices. | PlaceDeviceTelemetry.ReadWrite.All |
| Read your organization's policies | Policy.Read.All |
| Read your organization's conditional access policies | Policy.Read.ConditionalAccess |
| Read your organization's device configuration policies | Policy.Read.DeviceConfiguration |
| Read your organization’s identity protection policy | Policy.Read.IdentityProtection |
| Read consent and permission grant policies | Policy.Read.PermissionGrant |
| Read and write your organization's directory access review default policy | Policy.ReadWrite.AccessReview |
| Read and write your organization's application configuration policies | Policy.ReadWrite.ApplicationConfiguration |
| Read and write authentication flow policies | Policy.ReadWrite.AuthenticationFlows |
| Read and write all authentication method policies | Policy.ReadWrite.AuthenticationMethod |
| Read and write your organization's authorization policy | Policy.ReadWrite.Authorization |
| Read and write your organization's conditional access policies | Policy.ReadWrite.ConditionalAccess |
| Read and write your organization's consent request policy | Policy.ReadWrite.ConsentRequest |
| Read and write your organization's cross tenant access policies | Policy.ReadWrite.CrossTenantAccess |
| Read and write your organization's device configuration policies | Policy.ReadWrite.DeviceConfiguration |
| Read and write your organization's external identities policy | Policy.ReadWrite.ExternalIdentities |
| Read and write feature rollout policies | Policy.ReadWrite.FeatureRollout |
| Read and write your organization's federated token validation policy | Policy.ReadWrite.FedTokenValidation |
| Read and write your organization’s identity protection policy | Policy.ReadWrite.IdentityProtection |
| Manage consent and permission grant policies | Policy.ReadWrite.PermissionGrant |
| Read and write your organization's security defaults policy | Policy.ReadWrite.SecurityDefaults |
| Read and write your organization's trust framework policies | Policy.ReadWrite.TrustFramework |
| Read presence information for all users | Presence.Read.All |
| Read and write presence information for all users | Presence.ReadWrite.All |
| Read printers | Printer.Read.All |
| Read and update printers | Printer.ReadWrite.All |
| Perform advanced operations on print jobs | PrintJob.Manage.All |
| Read print jobs | PrintJob.Read.All |
| Read basic information for print jobs | PrintJob.ReadBasic.All |
| Read and write print jobs | PrintJob.ReadWrite.All |
| Read and write basic information for print jobs | PrintJob.ReadWriteBasic.All |
| Read tenant-wide print settings | PrintSettings.Read.All |
| Read, write and update print task definitions | PrintTaskDefinition.ReadWrite.All |
| Read privileged access to Azure AD roles | PrivilegedAccess.Read.AzureAD |
| Read privileged access to Azure AD groups | PrivilegedAccess.Read.AzureADGroup |
| Read privileged access to Azure resources | PrivilegedAccess.Read.AzureResources |
| Read and write privileged access to Azure AD roles | PrivilegedAccess.ReadWrite.AzureAD |
| Read and write privileged access to Azure AD groups | PrivilegedAccess.ReadWrite.AzureADGroup |
| Read and write privileged access to Azure resources | PrivilegedAccess.ReadWrite.AzureResources |
| Read assignment schedules for access to Azure AD groups | PrivilegedAssignmentSchedule.Read.AzureADGroup |
| Read, create, and delete assignment schedules for access to Azure AD groups | PrivilegedAssignmentSchedule.ReadWrite.AzureADGroup |
| Delete assignment schedules for access to Azure AD groups | PrivilegedAssignmentSchedule.Remove.AzureADGroup |
| Read eligibility schedules for access to Azure AD groups | PrivilegedEligibilitySchedule.Read.AzureADGroup |
| Read, create, and delete eligibility schedules for access to Azure AD groups | PrivilegedEligibilitySchedule.ReadWrite.AzureADGroup |
| Delete eligibility schedules for access to Azure AD groups | PrivilegedEligibilitySchedule.Remove.AzureADGroup |
| Read profile photo of a user or group | ProfilePhoto.Read.All |
| Read and write profile photo of a user or group | ProfilePhoto.ReadWrite.All |
| Read all programs | ProgramControl.Read.All |
| Manage all programs | ProgramControl.ReadWrite.All |
| Read all certificate based authentication configurations | PublicKeyInfrastructure.Read.All |
| Read and write all certificate based authentication configurations | PublicKeyInfrastructure.ReadWrite.All |
| Read all Question and Answers | QnA.Read.All |
| Read Records Management configuration, labels and policies | RecordsManagement.Read.All |
| Read and write Records Management configuration, labels and policies | RecordsManagement.ReadWrite.All |
| Read all usage reports | Reports.Read.All |
| Read all admin report settings | ReportSettings.Read.All |
| Read and write all admin report settings | ReportSettings.ReadWrite.All |
| Read resource specific permissions granted on a chat | ResourceSpecificPermissionGrant.ReadForChat.All |
| Read resource specific permissions granted on a team | ResourceSpecificPermissionGrant.ReadForTeam.All |
| Read all resource specific permissions granted on user accounts | ResourceSpecificPermissionGrant.ReadForUser.All |
| Read all identity risk prevention providers | RiskPreventionProviders.Read.All |
| Read and write all identity risk prevention providers | RiskPreventionProviders.ReadWrite.All |
| Read all active role assignments and role schedules for your company's directory | RoleAssignmentSchedule.Read.Directory |
| Read, update, and delete all policies for privileged role assignments of your company's directory | RoleAssignmentSchedule.ReadWrite.Directory |
| Delete all active role assignments of your company's directory | RoleAssignmentSchedule.Remove.Directory |
| Read all eligible role assignments and role schedules for your company's directory | RoleEligibilitySchedule.Read.Directory |
| Read, update, and delete all eligible role assignments and schedules for your company's directory | RoleEligibilitySchedule.ReadWrite.Directory |
| Delete all eligible role assignments of your company's directory | RoleEligibilitySchedule.Remove.Directory |
| Read role management data for all RBAC providers | RoleManagement.Read.All |
| Read Cloud PC RBAC settings | RoleManagement.Read.CloudPC |
| Read M365 Defender RBAC configuration | RoleManagement.Read.Defender |
| Read all directory RBAC settings | RoleManagement.Read.Directory |
| Read Exchange Online RBAC configuration | RoleManagement.Read.Exchange |
| Read and write all Cloud PC RBAC settings | RoleManagement.ReadWrite.CloudPC |
| Read M365 Defender RBAC configuration | RoleManagement.ReadWrite.Defender |
| Read and write all directory RBAC settings | RoleManagement.ReadWrite.Directory |
| Read and write Exchange Online RBAC configuration | RoleManagement.ReadWrite.Exchange |
| Read all alert data for your company's directory | RoleManagementAlert.Read.Directory |
| Read all alert data, configure alerts, and take actions on all alerts for your company's directory | RoleManagementAlert.ReadWrite.Directory |
| Read all policies in PIM for Groups | RoleManagementPolicy.Read.AzureADGroup |
| Read all policies for privileged role assignments of your company's directory | RoleManagementPolicy.Read.Directory |
| Read, update, and delete all policies in PIM for Groups | RoleManagementPolicy.ReadWrite.AzureADGroup |
| Read, update, and delete all policies for privileged role assignments of your company's directory | RoleManagementPolicy.ReadWrite.Directory |
| Trigger working time policies and read the working time status | Schedule-WorkingTime.ReadWrite.All |
| Read all schedule items | Schedule.Read.All |
| Read and write all schedule items | Schedule.ReadWrite.All |
| Read/Write schedule permissions for a role | SchedulePermissions.ReadWrite.All |
| Read your organization's search configuration | SearchConfiguration.Read.All |
| Read and write your organization's search configuration | SearchConfiguration.ReadWrite.All |
| Read your organization's security actions | SecurityActions.Read.All |
| Read and update your organization's security actions | SecurityActions.ReadWrite.All |
| Read all security alerts | SecurityAlert.Read.All |
| Read and write to all security alerts | SecurityAlert.ReadWrite.All |
| Read metadata and detection details for all emails in your organization | SecurityAnalyzedMessage.Read.All |
| Read metadata, detection details, and execute remediation actions on all emails in your organization | SecurityAnalyzedMessage.ReadWrite.All |
| Read your organization’s security events | SecurityEvents.Read.All |
| Read and update your organization’s security events | SecurityEvents.ReadWrite.All |
| Read all identity security health issues | SecurityIdentitiesHealth.Read.All |
| Read and write all identity security health issues | SecurityIdentitiesHealth.ReadWrite.All |
| Read all identity security sensors | SecurityIdentitiesSensors.Read.All |
| Read and write all identity security sensors | SecurityIdentitiesSensors.ReadWrite.All |
| Read all identity security available user actions | SecurityIdentitiesUserActions.Read.All |
| Read and perform all identity security available user actions | SecurityIdentitiesUserActions.ReadWrite.All |
| Read all security incidents | SecurityIncident.Read.All |
| Read and write to all security incidents | SecurityIncident.ReadWrite.All |
| Read all Exchange service activity | ServiceActivity-Exchange.Read.All |
| Read all Microsoft 365 Web service activity | ServiceActivity-Microsoft365Web.Read.All |
| Read all One Drive service activity | ServiceActivity-OneDrive.Read.All |
| Read all Teams service activity | ServiceActivity-Teams.Read.All |
| Read service health | ServiceHealth.Read.All |
| Read service messages | ServiceMessage.Read.All |
| Read service principal endpoints | ServicePrincipalEndpoint.Read.All |
| Read and update service principal endpoints | ServicePrincipalEndpoint.ReadWrite.All |
| Read SharePoint and OneDrive tenant settings | SharePointTenantSettings.Read.All |
| Read and change SharePoint and OneDrive tenant settings | SharePointTenantSettings.ReadWrite.All |
| Read all users' short notes | ShortNotes.Read.All |
| Read, create, edit, and delete all users' short notes | ShortNotes.ReadWrite.All |
| Have full control of all site collections | Sites.FullControl.All |
| Create, edit, and delete items and lists in all site collections | Sites.Manage.All |
| Read items in all site collections | Sites.Read.All |
| Read and write items in all site collections | Sites.ReadWrite.All |
| Access selected site collections | Sites.Selected |
| Read SPIFFE trust domains and child resources | SpiffeTrustDomain.Read.All |
| Read and write SPIFFE trust domains and child resources | SpiffeTrustDomain.ReadWrite.All |
| Read all subject rights requests | SubjectRightsRequest.Read.All |
| Read and write all subject rights requests | SubjectRightsRequest.ReadWrite.All |
| Read all Azure AD synchronization data. | Synchronization.Read.All |
| Read and write all Azure AD synchronization data. | Synchronization.ReadWrite.All |
| Upload user data to the identity synchronization service | SynchronizationData-User.Upload |
| Upload user data to the identity sync service for apps that this application creates or owns | SynchronizationData-User.Upload.OwnedBy |
| Read all users’ tasks and tasklist | Tasks.Read.All |
| Read and write all users’ tasks and tasklists | Tasks.ReadWrite.All |
| Create teams | Team.Create |
| Get a list of all teams | Team.ReadBasic.All |
| Read the members of all teams | TeamMember.Read.All |
| Add and remove members from all teams | TeamMember.ReadWrite.All |
| Add and remove members with non-owner role for all teams | TeamMember.ReadWriteNonOwnerRole.All |
| Read all users' teamwork activity feed | TeamsActivity.Read.All |
| Send a teamwork activity to any user | TeamsActivity.Send |
| Manage installation and permission grants of selected Teams apps in all chats | TeamsAppInstallation.ManageSelectedForChat.All |
| Manage installation and permission grants of selected Teams apps in all teams | TeamsAppInstallation.ManageSelectedForTeam.All |
| Manage installation and permission grants of selected Teams apps for all user accounts | TeamsAppInstallation.ManageSelectedForUser.All |
| Read installed Teams apps for all installation scopes | TeamsAppInstallation.Read.All |
| Read installed Teams apps for all chats | TeamsAppInstallation.ReadForChat.All |
| Read installed Teams apps for all teams | TeamsAppInstallation.ReadForTeam.All |
| Read installed Teams apps for all users | TeamsAppInstallation.ReadForUser.All |
| Read selected installed Teams apps in all chats | TeamsAppInstallation.ReadSelectedForChat.All |
| Read selected installed Teams apps in all teams | TeamsAppInstallation.ReadSelectedForTeam.All |
| Read selected installed Teams apps for all users | TeamsAppInstallation.ReadSelectedForUser.All |
| Manage installation and permission grants of Teams apps for all chats | TeamsAppInstallation.ReadWriteAndConsentForChat.All |
| Manage installation and permission grants of Teams apps for all teams | TeamsAppInstallation.ReadWriteAndConsentForTeam.All |
| Manage installation and permission grants of Teams apps in a user account | TeamsAppInstallation.ReadWriteAndConsentForUser.All |
| Allow the Teams app to manage itself and its permission grants for all chats | TeamsAppInstallation.ReadWriteAndConsentSelfForChat.All |
| Allow the Teams app to manage itself and its permission grants for all teams | TeamsAppInstallation.ReadWriteAndConsentSelfForTeam.All |
| Allow the Teams app to manage itself and its permission grants in all user accounts | TeamsAppInstallation.ReadWriteAndConsentSelfForUser.All |
| Manage Teams apps for all chats | TeamsAppInstallation.ReadWriteForChat.All |
| Manage Teams apps for all teams | TeamsAppInstallation.ReadWriteForTeam.All |
| Manage Teams apps for all users | TeamsAppInstallation.ReadWriteForUser.All |
| Manage selected installed Teams apps in all chats | TeamsAppInstallation.ReadWriteSelectedForChat.All |
| Manage selected installed Teams apps in all teams | TeamsAppInstallation.ReadWriteSelectedForTeam.All |
| Manage selected Teams apps installed for all users | TeamsAppInstallation.ReadWriteSelectedForUser.All |
| Allow the Teams app to manage itself for all chats | TeamsAppInstallation.ReadWriteSelfForChat.All |
| Allow the Teams app to manage itself for all teams | TeamsAppInstallation.ReadWriteSelfForTeam.All |
| Allow the app to manage itself for all users | TeamsAppInstallation.ReadWriteSelfForUser.All |
| Read all teams' settings | TeamSettings.Read.All |
| Read and change all teams' settings | TeamSettings.ReadWrite.All |
| Read and Write Teams policy user assignment and unassigment for all policy types. | TeamsPolicyUserAssign.ReadWrite.All |
| Read Teams resource accounts | TeamsResourceAccount.Read.All |
| Create tabs in Microsoft Teams. | TeamsTab.Create |
| Read tabs in Microsoft Teams. | TeamsTab.Read.All |
| Read and write tabs in Microsoft Teams. | TeamsTab.ReadWrite.All |
| Allow the Teams app to manage all tabs for all chats | TeamsTab.ReadWriteForChat.All |
| Allow the Teams app to manage all tabs for all teams | TeamsTab.ReadWriteForTeam.All |
| Allow the app to manage all tabs for all users | TeamsTab.ReadWriteForUser.All |
| Allow the Teams app to manage only its own tabs for all chats | TeamsTab.ReadWriteSelfForChat.All |
| Allow the Teams app to manage only its own tabs for all teams | TeamsTab.ReadWriteSelfForTeam.All |
| Allow the Teams app to manage only its own tabs for all users | TeamsTab.ReadWriteSelfForUser.All |
| Read Teams user configurations | TeamsUserConfiguration.Read.All |
| Read all available Teams Templates | TeamTemplates.Read.All |
| Create chat and channel messages with anyone's identity and with any timestamp | Teamwork.Migrate.All |
| Read organizational teamwork settings | Teamwork.Read.All |
| Read Teams app settings | TeamworkAppSettings.Read.All |
| Read and write Teams app settings | TeamworkAppSettings.ReadWrite.All |
| Read Teams devices | TeamworkDevice.Read.All |
| Read and write Teams devices | TeamworkDevice.ReadWrite.All |
| Read tags in Teams | TeamworkTag.Read.All |
| Read and write tags in Teams | TeamworkTag.ReadWrite.All |
| Read all term store data | TermStore.Read.All |
| Read and write all term store data | TermStore.ReadWrite.All |
| Read threat assessment requests | ThreatAssessment.Read.All |
| Run hunting queries | ThreatHunting.Read.All |
| Read all threat indicators | ThreatIndicators.Read.All |
| Manage threat indicators this app creates or owns | ThreatIndicators.ReadWrite.OwnedBy |
| Read all Threat Intelligence Information | ThreatIntelligence.Read.All |
| Read all of the organization's threat submissions | ThreatSubmission.Read.All |
| Read and write all of the organization's threat submissions | ThreatSubmission.ReadWrite.All |
| Read and write all of the organization's threat submission policies | ThreatSubmissionPolicy.ReadWrite.All |
| Read trust framework key sets | TrustFrameworkKeySet.Read.All |
| Read and write trust framework key sets | TrustFrameworkKeySet.ReadWrite.All |
| Convert an external user to internal member user | User-ConvertToInternal.ReadWrite.All |
| Read all users' lifecycle information | User-LifeCycleInfo.Read.All |
| Read and write all users' lifecycle information | User-LifeCycleInfo.ReadWrite.All |
| Read and write all secondary mail addresses for users | User-Mail.ReadWrite.All |
| Read and write all password profiles and reset user passwords | User-PasswordProfile.ReadWrite.All |
| Read and write all user mobile phone and business phones | User-Phone.ReadWrite.All |
| Delete and restore all users | User.DeleteRestore.All |
| Enable and disable user accounts | User.EnableDisableAccount.All |
| Export user's data | User.Export.All |
| Invite guest users to the organization | User.Invite.All |
| Manage all users' identities | User.ManageIdentities.All |
| Read all users' full profiles | User.Read.All |
| Read all users' basic profiles | User.ReadBasic.All |
| Read and write all users' full profiles | User.ReadWrite.All |
| Revoke all sign in sessions for a user | User.RevokeSessions.All |
| Read all users' authentication methods | UserAuthenticationMethod.Read.All |
| Read and write all users' authentication methods | UserAuthenticationMethod.ReadWrite.All |
| Read all users' passkey authentication methods | UserAuthMethod-Passkey.Read.All |
| Read and write all users' passkey authentication methods | UserAuthMethod-Passkey.ReadWrite.All |
| Deliver and manage all user's notifications | UserNotification.ReadWrite.CreatedByApp |
| Read all user shift preferences | UserShiftPreferences.Read.All |
| Read and write all user shift preferences | UserShiftPreferences.ReadWrite.All |
| Read all user teamwork settings | UserTeamwork.Read.All |
| Read all virtual appointments for users, as authorized by online meetings application access policy | VirtualAppointment.Read.All |
| Read-write all virtual appointments for users, as authorized by online meetings app access policy | VirtualAppointment.ReadWrite.All |
| Send notification regarding virtual appointments as any user | VirtualAppointmentNotification.Send |
| Read all users' virtual events | VirtualEvent.Read.All |
| Read and write anonymous users' virtual event registrations | VirtualEventRegistration-Anon.ReadWrite.All |
| Read and write all Windows update deployment settings | WindowsUpdates.ReadWrite.All |
| Read and write workforce integrations | WorkforceIntegration.ReadWrite.All |
Add Managed Identity permission
Now that we have defined our permission, we just need to apply it to the Managed Identity via PowerShell. To do this, we use the following commands:
$tenantId = "xxxx-xxxx-xxxx-xxxx-xxxxxxx" # Replace with your tenant ID - https://entra.microsoft.com
$graphApiAppId = "00000003-0000-0000-c000-000000000000" # Well known ID
$msiName = "function app name" # Name of your managed identity e.g. name of Function or Logic App
$graphPermissions = @("Mail.Send", "User.Read.All") # Add or remove permissions
Connect-AzureAD -TenantId $tenantId
$msi = Get-AzureADServicePrincipal -Filter "displayName eq '$msiName'" # Can take a few seconds, add a sleep if necessary
$graphApiAppRegistration = Get-AzureADServicePrincipal -Filter "appId eq '$graphApiAppId'"
$appRoles = $graphApiAppRegistration.AppRoles | Where-Object { $graphPermissions -contains $_.Value -and $_.AllowedMemberTypes -contains "Application" }
foreach ($appRole in $appRoles) {
New-AzureAdServiceAppRoleAssignment -ObjectId $msi.ObjectId -PrincipalId $msi.ObjectId -ResourceId $graphApiAppRegistration.ObjectId -Id $appRole.Id
}
This completes the permission changes. If you use an Azure Function and test it immediately to see if it works, you may still receive error messages such as “access denied” or similar. From time to time, Azure Function may not immediately recognize this or may still have cached information. Sometimes it takes several function restarts and stop/run commands and a few minutes of time.
Invoice Upload to ERP with Logic App and Azure Functions
This example is intended to show how quickly and easily workflows such as the automatic upload of invoices to the ERP system (in this case Lexoffice / Lexware Office) can be implemented using Azure Services.
Microsoft MVP awards 2019
On July 1st, Microsoft is honoring community work with the Most Valuable Professional (MVP) title all over the world. This years renewal cycle held some big surprises for us.
